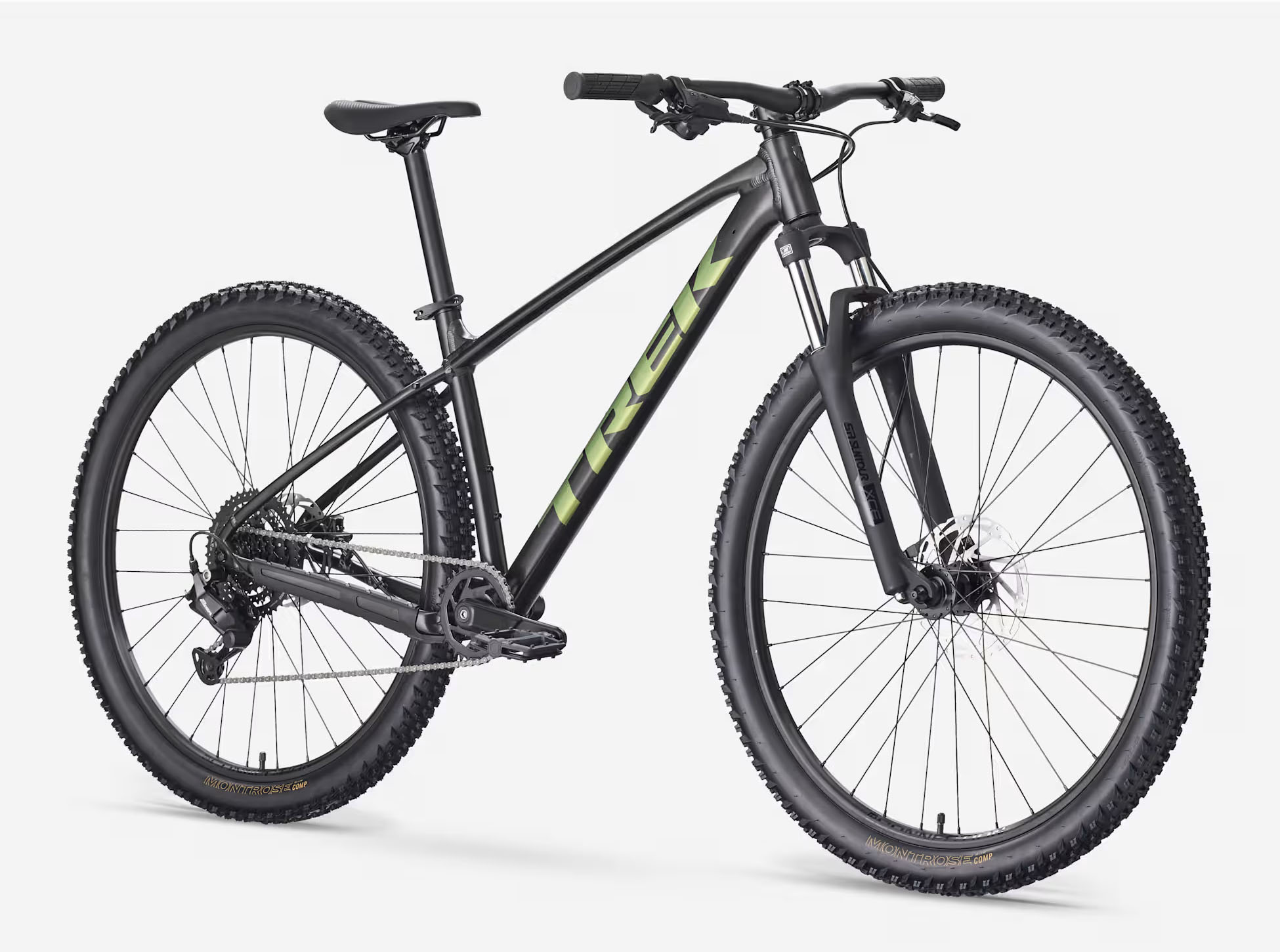

Trek Marlin 4
Tim has a
Trek
Marlin 4 Gen 3 hardtail mountain bike.
Ordered: May 7, 2026, Received: May 13, 2026
Model 5336957
Size: Medium
Color: Matte Dark Web
S/N: WTU064XC0170Z
- Alpha Silver Aluminum frame, internal derailleur & dropper post routing,
rack and kickstand mount, 135x5mm ThruSkew
- SR Suntour XCE 28 fork, coil spring, preload, 46mm offset for 29" wheel,
100mm QR, 100mm travel
- Front: Formula DC-20 hub, alloy, 6-bolt, 100x5mm
- Rear: Formula DC-22 hub, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Bontrager Connection rims, double-wall, 32-hole, 20mm width,
Schrader valve
- Shimano M315, 8 speed shifter
- Shimano ESSA U2000 rear derailleur
- ProWheel alloy, 30T narrow-wide steel ring, 170mm length crank
- Shimano HG300, 11-45, 8 speed cassette
- KMC Z8.3, 8 speed chain
- Nylon platform pedals
- Bikeroo Oversized Comfort Bike Saddle
- Bontrager alloy seatpost, 31.6mm, 12mm offset, 330mm length
- Bontrager alloy handlebar, 31.8mm, 15mm rise, 750mm width
- Trek Line Comp nylon lock-on grips
- Bontrager Comp stem, 31.8mm, Blendr compatible, 7 degree, 50mm length
- Bontrager Comp & Legacy Elite Blendr Base W540565
- Tektro HD-M275 hydraulic disc brake
- Tektro, 6-bolt, 160mm brake rotor (rear)
- Tektro, 6-bolt, 180mm brake rotor (front)
- Weight: 32.85 lbs
| Chainring | 30t |
| Cassette | 11-45t |
| Ratio | 0.667 to 2.727 |
| Gear Inches | 19 to 80 |
Tires
- Bontrager Montroase Comp
- 30 TPI, 29 × 2.4" - These are the tires that come with the
bike. They seem reasonable, though they may be heavy. If Tim
doesn't like them, we can upgrade to something else.
Computer & Light Mounts
The stem is Blendr compatible, and the bike has a garmin mount for a bike
computer.
In the future, Tim might want to have a light mount as well. If
so, we'll need to get another Bontrager Comp & Legacy Elite Blendr Base
W540565. I should probably get one now so we'll have it when that day
comes.
Saddle
Tim wants a seat for fat asses.
Oh, this bike doesn't have a dropper post. We might want to consider
that for an upgrade. The frame has routing for it.
