Trek Émonda SL 5

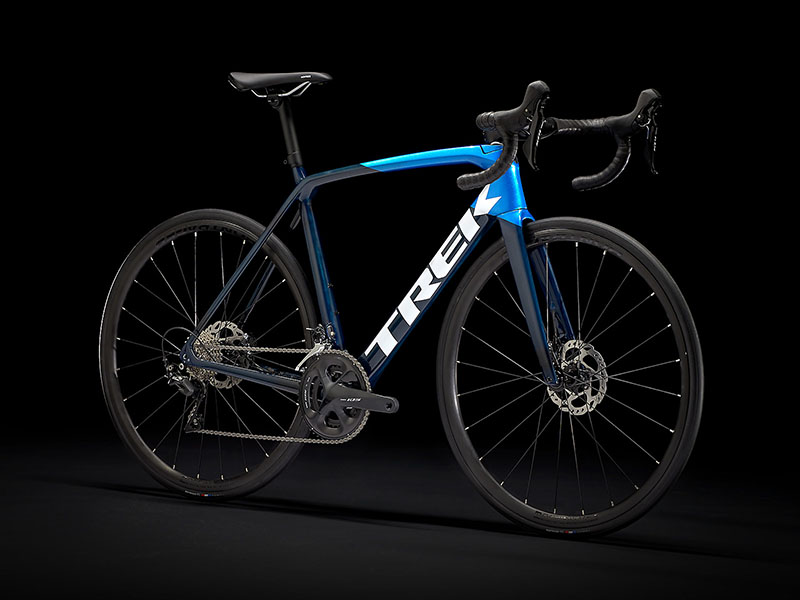

My road bike is a 2021 Trek Émonda SL 5.
I purchased it on August 31, 2021. If I have decoded the serial number correctly, it is a 2021 model year bike, manufactured on December 1, 2020.
- Ultralight 500 Series OCLV Carbon frame, Émonda SL full carbon fork
- 142x12mm rear thru axle, 100x12mm front thru axle
- Shimano 105 WH-RS710-C32 carbon wheelset (installed May 24, 2024 @ 3816 miles)
- 50/34t chainring, 11-30t 11 speed cassette (1.133 to 4.545 ratio)
- Shimano 105 hydraulic disc brakes
- Bontrager Aeolus Pro Saddle, 155mm
- Garmin Rally XC200 SPD power meter pedals
- Garmin Edge 1040 Solar computer
- DuoTrap S Digital Sensor
- 18.81 lbs (20.18 - 1.37)
Size: 52cm H1.5
Color: Carbon Blue Smoke / Metalic Blue
S/N: WTU336XT0044R
Service Manual
| Chainring | 50/34t |
|---|---|
| Cassette | 11-30t |
| Ratio | 1.133 to 4.545 |
| Gear Inches | 30.16 to 121.45 |
Tires
- Schwalbe ONE 365
- This is what Schwalbe offers for winter road tires. They are basically just a 4-season version of their Addix compound that has "plenty of grip even at low temperatures". They aren't particularly puncture resistant, but they are lighter than the Durano Plus. Installed: Dec 19, 2024 at 5207.9 miles.
- Schwalbe Durano Plus 700x28mm
- Schwalbe claims these are "the most puncture resistant road bike tire available", and they appear to be one of the two most respected tires for puncture resistance. In about 4500 miles, I had only a few punctures, and the rear started to get a little squarish.
- Bontrager R1 700x28mm Hard-Case Lite
- These are the tires that came with my my Émonda. They are just basic slicks. I rode about 750 miles on them before taking them off, and I still have them as spares. Worn, they weigh 341g each.
Tire Inflation:
Front: 60 PSI
Rear: 70 PSI
Tubes
- Kenda 700x20-28c 48mm Presta
- The valve stem on these is plenty long enough on my 32mm carbon fiber rims. The width/diameter is just perfect for 28mm tires. I think I will standardize on these. I will have to stock up.
- Kenda 700x20-28c 33mm Presta
- The valve stem was almost too short, and that must have been on my old aluminum rims, not the new carbon fiber ones.
- Continental Race 28 (700c) Wide (25-32mm) 42mm Presta
- The valve stems on these are just barely long enough for my carbon rims, but they are a little inconveniently short sometimes.
Drivetrain
Chainring: 50/34t
Cassette: 11-30t (11, 12, 13, 14, 15, 17, 19, 21, 24, 27, 30)
[installed Sep 3, 2024 @ 4483 miles]
Ratio: 1.133 to 4.545
Chain: Shimano CN-HG901-11, 108 links, [installed Sep 3, 2024 @ 4483 miles]
Rear Shifter Cable: Shimano Optislick Y60198100 [installed Sep 4, 2024 @ 4483 miles]
Brake Pads
I have replaced the rear brake pads with BP-L05A-RF, [installed Oct 3, 2025 @ 6021 miles]. The front pads are still the originals that came with the bike.
Bar Tape
Last year, I had Lizard Skins 2.5mm bar tape installed. It doesn't seem thick enough. This year, I put 3.2mm bar tape on my Checkpoint. We'll see how I like it, but initially it seems better. On this bike, I think I should go back to black. Lizard Skins does sell a Sky Blue version, instead of the Cobalt Blue set I got this last time, but I don't think I want to stand out so much.
